Pressure Regulators |
 |
| Art. Nr. 5100 |
compressed air |
| Inlet pressure (bar) |
200 |
| Working pressure (bar) |
10 |
| Flow rate (Nm3/h) |
30 |
|
| |
|
 |
| |
compressed air |
| Art. Nr. 5160 |
5160-20 |
5160-40 |
5160-60 |
| Inlet pressure (bar) |
200 |
200 |
200 |
| Working pressure (bar) |
20 |
40 |
60 |
| Flow rate (Nm3/h) |
40 |
50 |
60 |
|
| |
|
 |
| Art. Nr. 5180 |
compressed air |
| Inlet pressure (bar) |
200 |
| Working pressure (bar) |
10 |
| Flow rate (Nm3/h) |
30 |
|
| |
|
 |
| Art. Nr. 5150 |
compressed air |
| Inlet pressure (bar) |
200 |
| Working pressure (bar) |
4 (preset) |
| Flow rate (Nm3/h) |
0-3
0-16
0-32 |
|
| |
|
Automatic distribution center with controlled pressure |
| Art. Nr. 7860 |
compressed air |
| Inlet pressure (bar) |
200 |
| Working pressure (bar) |
3-10 |
| Flow rate (Nm3/h) |
max 16 |
|
Distribution center
with controlled gas line option
for high purity gases |
| Art. Nr. 7860 |
compressed air |
| Inlet pressure (bar) |
200 |
| Working pressure (bar) |
0-4
0-6
0-10 |
| Flow rate (Nm3/h) |
12/14/16 |
|

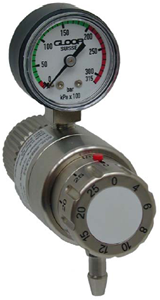

Pressure regulators with flow controlled
Laboratory shot with controlled flow in liters |
|
| Technical data |
|
| Construction |
single-stage piston pressure regulator |
| Inlet pressure |
200 bar |
| Outlet pressure |
4.5 bar (firmly fixed) |
| Graduation of flow-rate |
0.5 – 5 l/min (0.5-1-1.5-2-2.5-3-4-5) |
|
1 – 15 l/min (1-2-3-4-6-8-12-15) |
|
4 – 25 l/min (4-6-8-10-12-15-20-25) |
| Accuracy of measurement |
+/-10% |
| Gas |
argon, carbon dioxide, oxygen, nitrogen, compressed air |
| Inlet |
gas specific screw connector |
| Outlet |
connector for hose 6 mm or 1/4" |
| Material body |
: brass, external parts nickel-plated |
| Operating temperature |
-20° to +60° |
| Weight |
720 grams |
|

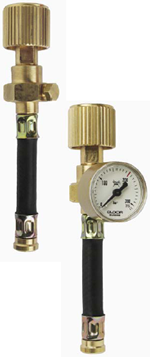

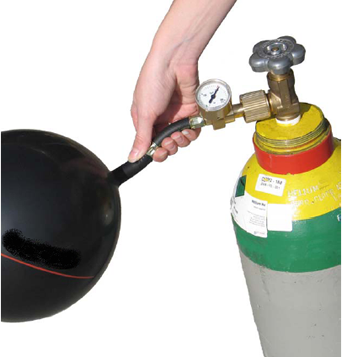

System of filling balloons with helium |

Technical data :
| Inlet pressure |
200 bar |
| Outlet pressure |
variable |
| Gases |
helium and mixtures of helium and air |
| Connection |
screw connector for cylinder |
| Outlet |
balloon filling nipple |
| Material |
brass, O-ring in FPM, seat in PA |
| Weight |
320 grams (without gauge), respectively 390 grams (with gauge) |
|
Stainless reducers for medical implementations |

Technical Data
| Construction |
Single-stage diaphragm pressure reducing valve |
| Inlet pressure |
200 bar |
| Outlet pressure |
Adjustable 0-1.5 / 0-4 / 0-6 / 0-10 bar, or preset at customers request |
| Flow rate |
Q1 = 16 Nm3/h / Qmax = 17 Nm3/h |
| Irregularity coefficient |
i < 0.1 (P1=200...20 bar) |
| Gas |
Air, O2, CO2, N2O, N2, He, Xe, test gas mixtures |
| Inlet |
Cylinder conection DIN, NF, AGA, BS, PIN-Index, UNI (others on request) |
| Outlet |
G1/4" inner thread (one outlet downward, one outlet lateral), NIST, quick coupling |
| Material |
Brass body, external parts nickel-plated |
| Sealing material |
EPDM, Si, PA, PEEK |
| Operating temperature |
-20° to +60° |
| Dimensions |
W x H X D 165 x 117 x 115 mm |
| Weight |
1.8 kg |
|
Bidirectional Distribution Center
for high-pure gases |
  |
Technical Data
| Classification |
equipment class according to CE Guideline 93/42 EEC, Annex IX, class II b |
| UMDNS Code |
18-046 (nomenclature for medical products) |
| Inlet pressure |
200 bar |
| Outlet pressure |
3 – 10 bar (permanently preset at the factory on request of the customer) |
| Flow |
80 Nm3/h |
| Gas |
AIR, O2, CO2, N2O, He, Xe, mixtures of test gases |
| Inlet |
3/4 “ male thread right, lateral and from below (if the second inlet is not required, it is closed off with a sealing plug) |
| Outlet |
vertically upwards, G1/4“ inner thread flat seal |
| Material |
brass nickel plated, stainless steel, EPDM diaphragm |
| Sealing material |
PEEK, PA6.6, EPM, POM |
| Operating temperature |
-20° up to + 60ºC |
| Dimensions |
W x H X D 44 x 36 x 15.5 cm |
| Weight |
14.5 kg |
|
